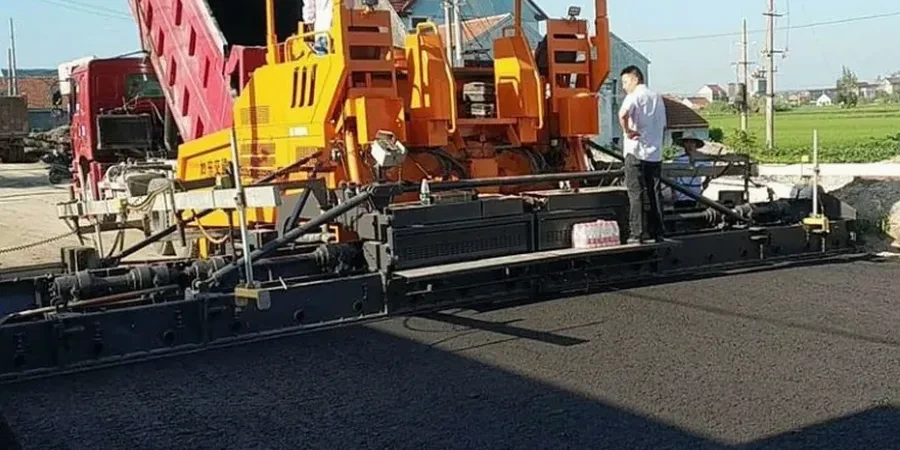

Flexible Pavement Design in Portlaoise: Engineered Layers for Long-Term Road Performance

For a comprehensive design package covering subgrade investigation, mechanistic analysis, layer thickness calculation, and construction QA/QC testing, the fee in Portlaoise generally runs between €1,680 and €5,020. The spread depends on the area of pavement, the volume of laboratory testing required, and whether the project involves a simple access road or a heavily trafficked industrial yard with multiple loading zones.

The Transport Infrastructure Ireland method requires the subgrade CBR to be measured at the equilibrium moisture content the soil will reach under the sealed pavement, which in practice means a 96-hour soaked CBR test for the silty clays common around Portlaoise. That value feeds into the foundation class determination, and if the soaked CBR falls below 5%, the design must include a capping layer of specified thickness and stiffness. We also adjust the asphalt tensile strain fatigue equation to reflect the reduced support from a moisture-affected subgrade.

Roundabouts concentrate lateral shear and slow-speed turning stresses that a standard highway cross-section does not see. We design the asphalt layers in the circulatory carriageway with a stiffer binder grade, typically 40/60 pen, and increase the binder course thickness by 20-30% relative to the approach roads. The granular sub-base and capping are extended beyond the kerb line to prevent edge failure, and we specify a polymer-modified bitumen in the surface course to resist the scuffing from trailer axles tracking across the tight radius.

Flexible pavement distributes the wheel load through a series of granular and bituminous layers that bend under traffic, transferring stress to the subgrade in a diminishing cone. Rigid pavement uses a concrete slab that bridges minor subgrade weaknesses through its flexural strength. In Portlaoise, we tend toward flexible designs for most road and car park applications because they are easier to stage-construct, simpler to repair after utility trenching, and perform well on the moderately expansive clays when the capping is properly designed. Rigid becomes the better option when the subgrade is extremely weak (CBR below 2%) or when fuel spillage resistance is a priority.
