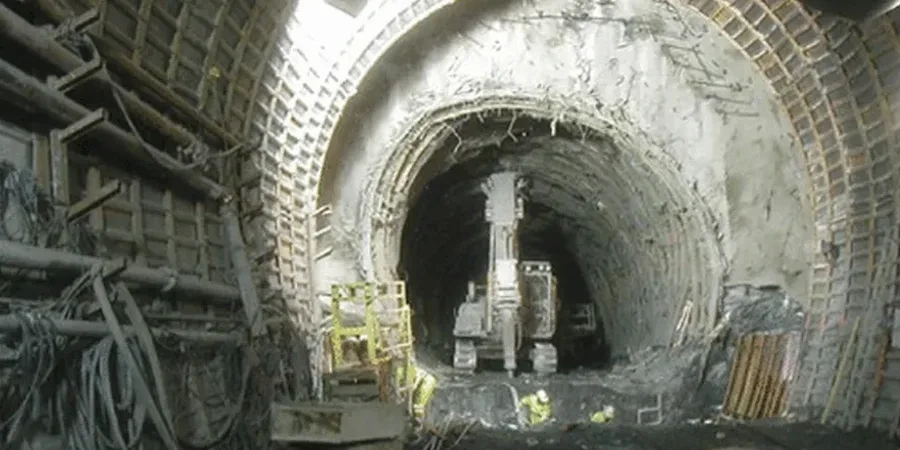

Geotechnical Analysis for Soft Soil Tunnels in Portlaoise

Tunnelling through the soft, water-laden ground typical of Ireland's midlands demands a rigorous approach. In Portlaoise, where much of the near-surface geology consists of glacial till and alluvial deposits, a standard desk study is rarely enough. The Irish National Annex to Eurocode 7 (I.S. EN 1997-2:2007) requires a defined programme of ground investigation before any underground excavation. We focus on the parameters that matter in Laois: undrained shear strength, consolidation characteristics, and the actual groundwater table, which tends to sit surprisingly high around the Triogue River catchment. This means the real challenge is not just the soil itself, but the pore water pressure regime that will act on your tunnel lining. For projects near the town centre, where space for investigation is limited, we often combine traditional borehole sampling with in-situ probes to build a reliable CPT test profile without the logistical headache of constant coring.

The biggest risk in a Portlaoise tunnel isn't collapse—it's the slow, silent settlement of the boulder clay that cracks buildings a hundred metres from the face.

Our service areas

How we work

One thing we see repeatedly in Portlaoise is that the transition zone between the boulder clay and the underlying limestone bedrock can be completely unpredictable. You might hit shattered rock at six metres in one location and solid limestone at twelve metres just thirty paces away. This variability is precisely why a single investigation method falls short. Our analysis for soft soil tunnels integrates laboratory classification with field performance data. We run triaxial consolidated-undrained tests to model the soil's behaviour under the stress relief that a tunnel opening creates, and we pair that with oedometer testing to predict long-term settlement beneath nearby structures. Before excavation starts, understanding these numbers can save a project from costly over-excavation or under-designed support. For sites where access is difficult, we can supplement these lab results with soft ground tunnel monitoring from the surface to track ground movement and pore pressure changes in real time.

Geotechnical Analysis for Soft Soil Tunnels in Portlaoise — Technical reference — Portlaoise

Local ground factors

Portlaoise sits on a glacially compressed landscape where the till matrix can be stiff in the dry but turns to a slurry when saturated. The water table here rarely drops below three metres, even in summer, because the underlying limestone acts as a barrier. This creates a near-permanent condition of fully softened soil around any tunnel excavation. If you underestimate the lateral earth pressure in these conditions, you end up with a lining design that is dangerously thin. We have also recorded natural moisture contents above the plastic limit in several site investigations around the Heath area, meaning the material is already close to behaving like a liquid. Without a proper geotechnical analysis for soft soil tunnels, you are essentially driving blind through material that can flow into the excavation face. The cost of a failure here is not just financial; it is the disruption to a county town that is growing faster than almost anywhere else in the midlands.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.co

Regulatory framework

I.S. EN 1997-2:2007 (Eurocode 7 – Ground investigation and testing), I.S. EN ISO 14688:2018 (Geotechnical investigation – Identification and classification of soil), I.S. EN ISO 17892 series (Laboratory testing of soil), National Annex NA to I.S. EN 1997-2

Technical data

Parameter	Typical value
Typical Soil Profile	Glacial till over limestone bedrock
Groundwater Level	1.5 to 4.0 m below ground surface
Undrained Shear Strength (Su)	40–120 kPa in cohesive tills
Coefficient of Consolidation (Cv)	0.5–5.0 m²/year
Permeability (k)	1×10⁻⁹ to 1×10⁻⁷ m/s
Testing Standard	I.S. EN ISO 17892 series

Common questions

What soil conditions make Portlaoise particularly challenging for tunnelling?

The combination of low-permeability glacial till and a consistently high water table means the ground is often saturated and has low effective stress. This leads to significant time-dependent settlement and face instability if not properly managed. Our lab focuses on measuring consolidation parameters and residual strength to address these exact conditions.

How long does a full geotechnical analysis for a soft soil tunnel take?

A standard programme of triaxial and oedometer testing takes about four to six weeks from sample arrival to the final report. This allows for proper saturation, consolidation, and shearing stages that cannot be rushed without compromising the data quality.

What is the typical cost range for a tunnel geotechnical investigation in Portlaoise?

Depending on the number of boreholes and the testing schedule, a complete investigation and analysis package for a soft soil tunnel in the Portlaoise area generally falls between €3,690 and €15,220. The final figure depends on the depth of the tunnel and the required testing density.

Do you handle the site investigation drilling or just the laboratory testing?

We coordinate the entire process. We work with experienced local drilling contractors for the site investigation, and then our accredited laboratory performs all testing and interpretation under one quality management system, aligned with I.S. EN ISO 17892.
